M2400 / SW Series Snap Rings

M2400 / SW Series Snap Rings, Retaining Rings, Safety Ring, External for shaft, made of spring steel, black oxide, size d8-d300mm from China Retaining Rings / Snap Ring manufacturer.

M2400 / SW Series Snap Rings , Retaining Rings, Safety Ring
Standard: M2400 / SW Series
Material: Spring Steel ; Finish: Black oxide
Size: d8 – d300

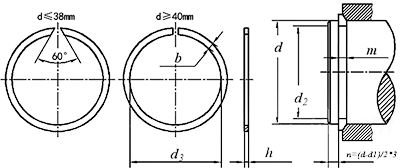

M2400 / SW Series Snap Rings, Retaining Ring, Safety Rings specification:

Size (d)	Part No.	S max (-0.1)	b max (-0.1)	d3 max	d2 max	d2 min	m	Weight (Kg/1000Pcs)
4	SW4	0.5	0.8	3.7	3.8	3.71	0.6	0.02
5	SW5	0.5	1	4.7	4.8	4.71	0.6	0.05
6	SW6	0.7	1.1	5.6	5.7	5.61	0.8	0.09
7	SW7	0.7	1.2	6.5	6.7	6.61	0.8	0.12
8	SW8	1	1.3	7.4	7.6	7.51	1.1	0.20
9	SW9	1	1.3	8.4	8.6	8.51	1.1	0.24
10	SW10	1	1.3	9.4	9.6	9.51	1.1	0.25
11	SW11	1	1.3	10.2	10.5	10.39	1.1	0.29
12	SW12	1	1.3	11.2	11.5	11.39	1.1	0.3
13	SW13	1	1.3	12.2	12.5	12.39	1.1	0.34
14	SW14	1.2	1.5	13.1	13.5	13.39	1.3	0.5
15	SW15	1.2	1.75	14	14.4	14.29	1.3	0.66
16	SW16	1.2	1.75	15	15.4	15.29	1.3	0.69
17	SW17	1.2	1.75	16	16.4	16.29	1.3	0.72
18	SW18	1.2	1.75	17	17.4	17.29	1.3	0.75
19	SW19	1.2	1.75	17.9	18.4	18.27	1.3	0.8
20	SW20	1.2	1.75	18.7	19.2	19.07	1.3	0.84
21	SW21	1.2	1.75	19.7	20.2	20.07	1.3	0.87
22	SW22	1.2	1.75	20.7	21.2	21.07	1.3	0.91
24	SW24	1.2	1.75	22.5	23	22.87	1.3	0.99
25	SW25	1.2	1.75	23.5	24	23.87	1.3	1
26	SW26	1.2	1.75	24.5	25	24.87	1.3	1.1
27	SW27	1.5	2.3	25.5	26	25.87	1.6	2
28	SW28	1.5	2.3	26.5	27	26.87	1.6	2.11
29	SW29	1.5	2.3	27.5	28	27.87	1.6	2.2
30	SW30	1.5	2.3	28.5	29	28.87	1.6	2.33
32	SW32	1.5	2.3	30.2	30.8	30.64	1.6	2.41
35	SW35	1.5	2.3	33.2	33.8	33.64	1.6	2.51
37	SW37	1.5	2.3	35.2	35.8	35.64	1.6	2.72
38	SW38	1.5	2.3	36.2	36.8	36.64	1.6	2.83
40	SW40	1.5	2.3	37.8	38.5	38.34	1.6	2.91
42	SW42	1.5	2.3	39.8	40.5	40.34	1.6	3.1
43	SW43	1.5	2.3	40.8	41.5	41.34	1.6	3.25
45	SW45	1.5	2.3	42.8	43.5	43.34	1.6	3.39
47	SW47	1.5	2.3	44.8	45.5	45.34	1.6	3.48
48	SW48	1.5	2.3	45.8	46.5	46.34	1.6	3.6
50	SW50	1.5	2.3	47.8	48.5	48.34	1.6	3.73
52	SW52	1.5	2.3	49.8	50.5	50.31	1.6	3.92
55	SW55	1.5	2.3	52.6	53.5	53.31	1.6	4.11
58	SW58	1.5	2.3	55.6	56.5	56.31	1.6	4.4
60	SW60	1.5	2.3	57.6	58.5	58.31	1.6	4.55
63	SW63	1.5	2.3	60.6	61.5	61.31	1.6	4.58
65	SW65	1.5	2.3	62.6	63.5	63.31	1.6	4.64
68	SW68	2	2.8	65.4	66.2	66.01	2.2	8.59
70	SW70	2	2.8	67.4	68.2	68.01	2.2	8.71
72	SW72	2	2.8	69.4	70.2	70.01	2.2	8.8
73	SW73	2	2.8	70.4	71.2	71.01	2.2	8.9
75	SW75	2	2.8	72.4	73.2	73.01	2.2	9.32
80	SW80	2	2.8	77.4	78.2	78.01	2.2	9.67
85	SW85	2.5	3.4	82	83	82.78	2.7	16
90	SW90	2.5	3.4	87	88	87.78	2.7	16
95	SW95	2.5	3.4	92	93	92.78	2.7	18.2
100	SW100	2.5	3.4	97	98	97.78	2.7	18.9
105	SW105	2.5	3.4	101.7	102.7	102.48	2.7	20.7
110	SW110	2.5	3.4	106.6	107.7	107.48	2.7	20.9
115	SW115	2.5	3.4	111.6	112.7	112.48	2.7	22.1
120	SW120	2.5	3.4	116.5	117.7	117.48	2.7	24.1
125	SW125	2.5	3.4	121.5	122.7	122.45	2.7	25.1
130	SW130	2.5	3.4	126.4	127.7	127.45	2.7	26.6
135	SW135	2.5	4	131.1	132.4	132.15	2.7	30.2
140	SW140	2.5	4	136	137.4	137.15	2.7	31.1
145	SW145	2.5	4	141	142.4	142.15	2.7	32.6
150	SW150	2.5	4	145.9	147.4	147.15	2.7	32.8
155	SW155	2.5	4	150.9	154.4	154.15	2.7	34.7
160	SW160	2.5	4	155.8	157.4	157.15	2.7	36.6
165	SW165	2.5	4	160.8	162.4	162.15	2.7	37.4
170	SW170	2.5	4	165.7	167.4	167.15	2.7	38.5
175	SW175	2.5	4	170.7	172.4	172.15	2.7	39.4
180	SW180	3	5	175.2	177	176.75	3.2	61.2
185	SW185	3	5	180.2	182	181.75	3.2	63.9
190	SW190	3	5	185.1	187	186.71	3.2	65.9
195	SW195	3	5	190.1	192	191.71	3.2	67.5
200	SW200	3	5	196	197	196.71	3.2	68.4
210	SW210	3	5	204.9	207	206.71	3.2	72
220	SW220	3	5	214.8	217	216.71	3.2	76.3
230	SW230	3	5	224.7	227	226.71	3.2	79.8
240	SW240	3	5	234.6	237	236.71	3.2	81.7
250	SW250	3	5	244.5	247	246.68	3.2	86.5
260	SW260	4	7.5	252.4	255	254.68	4.2	179
265	SW265	4	7.5	257.4	260	259.68	4.2	185.2
270	SW270	4	7.5	262.3	265	264.68	4.2	197.7
280	SW280	4	7.5	272.2	275	274.68	4.2	198.7
285	SW285	4	7.5	277.2	280	279.68	4.2	199.5
290	SW290	4	7.5	282.1	285	284.68	4.2	205.3
300	SW300	4	7.5	292.1	295	294.68	4.2	214.2
305	SW305	4	7.5	297.1	300	299.68	4.2	219.4
310	SW310	4	7.5	302	305	304.68	4.2	223.1
320	SW320	4	7.5	311.9	315	314.68	4.2	225.3
330	SW330	4	7.5	321.8	325	324.64	4.2	228.6
340	SW340	4	7.5	331.7	335	334.64	4.2	239.3
350	SW350	4	7.5	341.6	345	344.64	4.2	251.2
360	SW360	4	7.5	351.5	355	354.64	4.2	253.1
370	SW370	4	7.5	361.5	365	364.64	4.2	259.2
380	SW380	4	7.5	371.4	375	374.64	4.2	265.8
390	SW390	4	7.5	381.3	385	384.64	4.2	273.9
400	SW400	4	7.5	391.2	395	394.64	4.2	281.1
420	SW420	4.5	12	410	415	414.64	4.8	531
460	SW460	4.5	12	449.5	455	454.64	4.8	582

M2400 / SW Series Snap Rings
